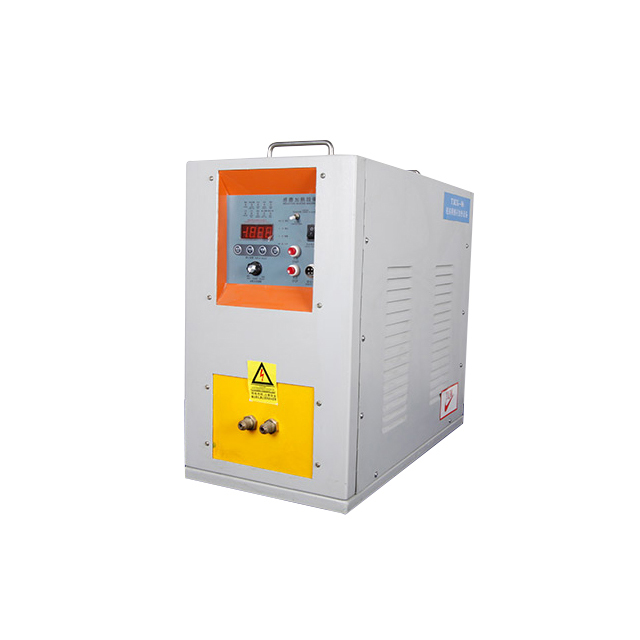

TXCG-06 main technical parameters:
(1) Specification: TXCG-06
(2) Input power: 6KW (3) Oscillation frequency: 300-700KHZ (4) Heating current: 3~30A (5) Input voltage: single-phase 220V 50HZ (6) Load duration: 80% (7) Heating and heat preservation Time: 0.1～99.9 seconds (8) Cooling water requirement: ≥0.2MPa ≥3L/min (9) Weight: 28KG (10) Volume (CM): 52L×26W×45H
Main applications and working principles:
The structure of the TXCG-06 series equipment adopts our company's third-generation inverter control technology and uses MOSFET tubes as power devices. The output frequency of the equipment is as high as 1.1MHZ. It is suitable for heating some small parts, especially in the industry of brazing carbide welding teeth. Wide range of applications.This product is suitable for many heating applications such as:
1. Carbide sawtooth welding
2. Heat treatment of small shafts and small parts
3. Valve quenching
4. Annealing or quenching of stainless steel or alloy steel filaments with a diameter less than 1mm
5. Magnetic levitation smelting, etc.
Advantages and applications of TXCG-06AB with timing function: 1. Heating power, heating time, holding power and holding time are independently adjustable, which can effectively control the heating curve and heating temperature to a certain extent; 2. Used in applications with high repeatability Workpiece heating and rapid heating; 3. When used in brazing, the combination of rapid heating and heat preservation functions is used to achieve rapid heating and at the same time maintain heat when the solder melts, so that the solder can fully spread;
Advantages and applications of TXCG-06B welding head: 1. The welding head weighs 3.5KG, the size is 14×14×9.3cm, and the connection length with the host is 2 meters; 2. The small welding head is especially suitable for fully automatic gear welding machines Welding frame; also particularly suitable for workplaces where the workpiece does not move and the welding head moves.
Working principle and structural characteristics TXCG-06 series equipment uses a series resonance circuit. After resonance, it outputs low-voltage, high-current high-frequency power through a high-frequency transformer.
This series of equipment uses MOSFET power devices, all powered by single-phase 220V, and adopts our company's third-generation converter control technology---dual regulation converter control technology.In this technology, power and frequency are independently controlled. MOSFET switching devices and amorphous inductors are used to form a high-frequency chopper circuit to regulate power. MOSFET series resonance and frequency automatic tracking technology are used to obtain precise soft-switching control of the inverter process. Equipment The output frequency is as high as 1.5MHZ, and the working reliability is greatly improved.In this series of equipment, the resonant capacitor is connected in series on the secondary side of the high-frequency transformer, so the voltage on the high-frequency transformer is low, which greatly reduces the insulation and spark problems caused by high voltage, greatly improving the operating reliability of the equipment. At the same time, the high-frequency transformer Small size, light weight and low loss.
The main technical parameters:
1. Input power: TXCG-06: 6KW
2. Input voltage: single-phase 220V, 50 or 60HZ;
3. Oscillation frequency: 150K—1.1MHZ;
4. Cooling water requirements: 0.2Mpa, 3 L/min
5. Load duration:
6. Automatically controlled timing function: heating time, holding time: 0.1-99.9 seconds
7. Weight and volume
main feature:
1. The frequency reaches 0.5-1.1MHZ, which can effectively control the quenching depth. It is especially suitable for heating small parts and filament parts;
2. Using IGBT power devices and unique inverter control technology, the equipment has high reliability and low maintenance costs;
3. Load duration, under power, 24 hours operation;
4. It has constant current/constant power control function and high heating efficiency;
5. Full display of output power, frequency and current;
6. Easy to install, just need to connect electricity and water to use, no need for special personnel to install;
7. Miniaturization, saving equipment installation space and easy maintenance;
8. The automatic control type can adjust the power and time of the heating and heat preservation processes, which is beneficial to improving the repeatability of heating quality and simplifying worker operations;
TXCG-06 main technical parameters:
(1) Specification: TXCG-06
(2) Input power: 6KW (3) Oscillation frequency: 300-700KHZ (4) Heating current: 3~30A (5) Input voltage: single-phase 220V 50HZ (6) Load duration: 80% (7) Heating and heat preservation Time: 0.1～99.9 seconds (8) Cooling water requirement: ≥0.2MPa ≥3L/min (9) Weight: 28KG (10) Volume (CM): 52L×26W×45H
Main applications and working principles:
The structure of the TXCG-06 series equipment adopts our company's third-generation inverter control technology and uses MOSFET tubes as power devices. The output frequency of the equipment is as high as 1.1MHZ. It is suitable for heating some small parts, especially in the industry of brazing carbide welding teeth. Wide range of applications.This product is suitable for many heating applications such as:
1. Carbide sawtooth welding
2. Heat treatment of small shafts and small parts
3. Valve quenching
4. Annealing or quenching of stainless steel or alloy steel filaments with a diameter less than 1mm
5. Magnetic levitation smelting, etc.
Advantages and applications of TXCG-06AB with timing function: 1. Heating power, heating time, holding power and holding time are independently adjustable, which can effectively control the heating curve and heating temperature to a certain extent; 2. Used in applications with high repeatability Workpiece heating and rapid heating; 3. When used in brazing, the combination of rapid heating and heat preservation functions is used to achieve rapid heating and at the same time maintain heat when the solder melts, so that the solder can fully spread;
Advantages and applications of TXCG-06B welding head: 1. The welding head weighs 3.5KG, the size is 14×14×9.3cm, and the connection length with the host is 2 meters; 2. The small welding head is especially suitable for fully automatic gear welding machines Welding frame; also particularly suitable for workplaces where the workpiece does not move and the welding head moves.
Working principle and structural characteristics TXCG-06 series equipment uses a series resonance circuit. After resonance, it outputs low-voltage, high-current high-frequency power through a high-frequency transformer. This series of equipment uses MOSFET power devices, all powered by single-phase 220V, and adopts our company's third-generation converter control technology---dual regulation converter control technology.In this technology, power and frequency are independently controlled. MOSFET switching devices and amorphous inductors are used to form a high-frequency chopper circuit to regulate power. MOSFET series resonance and frequency automatic tracking technology are used to obtain precise soft-switching control of the inverter process. Equipment The output frequency is as high as 1.5MHZ, and the working reliability is greatly improved.In this series of equipment, the resonant capacitor is connected in series on the secondary side of the high-frequency transformer, so the voltage on the high-frequency transformer is low, which greatly reduces the insulation and spark problems caused by high voltage, greatly improving the operating reliability of the equipment. At the same time, the high-frequency transformer Small size, light weight and low loss.
The main technical parameters:
1. Input power: TXCG-06: 6KW
2. Input voltage: single-phase 220V, 50 or 60HZ;
3. Oscillation frequency: 150K—1.1MHZ;
4. Cooling water requirements: 0.2Mpa, 3 L/min
5. Load duration:
6. Automatically controlled timing function: heating time, holding time: 0.1-99.9 seconds
7. Weight and volume
main feature:
1. The frequency reaches 0.5-1.1MHZ, which can effectively control the quenching depth. It is especially suitable for heating small parts and filament parts;
2. Using IGBT power devices and unique inverter control technology, the equipment has high reliability and low maintenance costs;
3. Load duration, under power, 24 hours operation;
4. It has constant current/constant power control function and high heating efficiency;
5. Full display of output power, frequency and current;
6. Easy to install, just need to connect electricity and water to use, no need for special personnel to install;
7. Miniaturization, saving equipment installation space and easy maintenance;
8. The automatic control type can adjust the power and time of the heating and heat preservation processes, which is beneficial to improving the repeatability of heating quality and simplifying worker operations;
