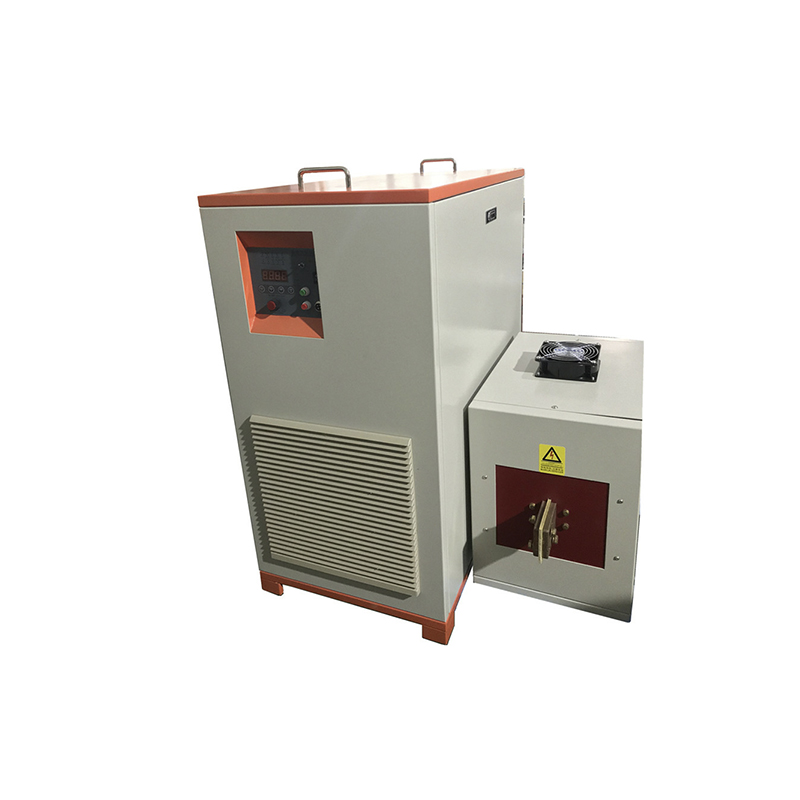

TX-70 technical parameters:
Model:TX-70
Input power:70KW
Input voltage: three-phase 380V, 50 or 60HZ
Oscillation frequency: 30-80KHZ
Cooling water requirements: 0.2Mpa, 10 L/min
Load duration: 100%
Split main and extension cable length: 2 meters
Weight: Host: 84Kg Extension: 32Kg
Dimensions in cm: main unit length 72*width 40*height 90, extension: length 60*width 30*height 45
This product is suitable for many heating applications such as:
(1) Heat treatment of large and small gears, large and small shafts and other parts
(2) Thermoforming of various materials
(3) Welding of copper contacts and other parts
(4) Smelting of various materials, etc.
main feature:
1. Using IGBT power devices and unique inverter control technology, the equipment has higher reliability and low maintenance costs;
2. Load duration, 24-hour operation under high power;
3. With constant current/constant power control function, higher heating efficiency;
4. Full display of output power, frequency and current;
5. Easy to install, just need to connect electricity and water to use, no need for special personnel to install;
6. Miniaturized, only 110KG, saving space, easy to install and maintain;
7. The automatic control type can adjust the power and time of the heating and heat preservation processes, which is beneficial to improving the repeatability of heating quality and simplifying worker operations.
TX-70 technical parameters:
Model:TX-70
Input power:70KW
Input voltage: three-phase 380V, 50 or 60HZ
Oscillation frequency: 30-80KHZ
Cooling water requirements: 0.2Mpa, 10 L/min
Load duration: 100%
Split main and extension cable length: 2 meters
Weight: Host: 84Kg Extension: 32Kg
Dimensions in cm: main unit length 72*width 40*height 90, extension: length 60*width 30*height 45
This product is suitable for many heating applications such as:
(1) Heat treatment of large and small gears, large and small shafts and other parts
(2) Thermoforming of various materials
(3) Welding of copper contacts and other parts
(4) Smelting of various materials, etc.
main feature:
1. Using IGBT power devices and unique inverter control technology, the equipment has higher reliability and low maintenance costs;
2. Load duration, 24-hour operation under high power;
3. With constant current/constant power control function, higher heating efficiency;
4. Full display of output power, frequency and current;
5. Easy to install, just need to connect electricity and water to use, no need for special personnel to install;
6. Miniaturized, only 110KG, saving space, easy to install and maintain;
7. The automatic control type can adjust the power and time of the heating and heat preservation processes, which is beneficial to improving the repeatability of heating quality and simplifying worker operations.
